HKY-FPV/F405 V2

modelF405-V2
typePRODUCT
price120

Specifications：HKY-F405 V2 FC1. The PCB adopts high-end 4-layer 1oZ thickened copper sheet and adopts high-end resin plug hole PCB production process, with strong anti-interference ability。2. Adopting industrial grade LDO, resistant to high temperature。3. Use inline connectors for easy inst...

Purchase

detailed information

Specifications：

HKY-F405 V2 FC

1. The PCB adopts high-end 4-layer 1oZ thickened copper sheet and adopts high-end resin plug hole PCB production process, with strong anti-interference ability。

2. Adopting industrial grade LDO, resistant to high temperature。

3. Use inline connectors for easy installation and soldering free。

4. The board comes with 4 programmable illusion LED lights, which can freely switch LED lighting effects。

5. Reserve an external LED light strip with a 12V power supply, and customize the remote control channel for light strip switch control。

6. The image transmission power supply can be freely turned on or off by setting a switch channel at the ground station, facilitating ground reference adjustment。

7. Adopting high-quality Murata capacitors from Japan, with strong filtering performance。

8. Eight motor control signal outputs。

9. Equipped with 6P sky terminal seat。

10. RX2 to SBUS。

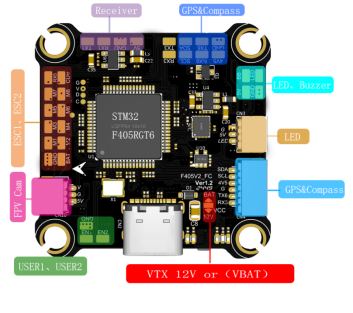

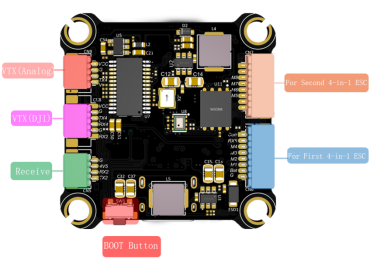

FC Specifications：

Size: 38 * 38mm (30.5mm-30.5mm mounting hole)

Input voltage: 2S-8S Lipo

Net weight of product: 8.5g

Packaging weight: 40g

Flight control parameters:

CPU: STM32F405RGT6

IMU: ICM42688
